ORION™ Central Venous Catheter Kits
Health Line’s Non-Tunneled Central Venous Catheters Kits
The ORION™ Central Venous Catheter is designed for short-term (less than 30 days) access to the central venous system for intravenous administration. This non-tunneled CVC is available in a variety of sizes and lengths to give clinicians multiple options to meet patients’ needs.
ORION™ Central Venous Catheter Kit Features
Medical Uses
The Health Line ORION™ Central Venous Catheter kit is designed for reliable, short-term access to the central venous system.
Material
Thermal reactive polyurethane softens after insertion for improved patient comfort.
Simple Grip Luers
The non-tunneled CVC has simple grip luers that are easy on gloves and color-coded for multiple treatment options.
Large Side Holes
The ORION™ CVC’s large side holes improve flow rates and infusion times.
Flexibility
A soft, flexible tip reduces vessel irritation during insertion and flexible suture wings provide secure external anchoring.
Depth Marking
Centimeter depth marking helps with precise placement.
ORION™ Single Lumen Central Venous Catheter Kits
| Catalogue No. | CVC Description | Guidewire | Introducer | Box Qty. | Carton Qty. |
|---|---|---|---|---|---|
| A32-06110 | 14ga x 10cm Single Lumen Orion™ CVC | Stainless | 18ga | 5 | 20 |
| A32-06116 | 14ga x 16cm Single Lumen Orion™ CVC | Stainless | 18ga | 5 | 20 |
| A32-06120 | 14ga x 20cm Single Lumen Orion™ CVC | Stainless | 18ga | 5 | 20 |
| A32-06130 | 14ga x 30cm Single Lumen Orion™ CVC | Stainless | 18ga | 5 | 20 |
| A32-05110 | 16ga x 10cm Single Lumen Orion™ CVC | Stainless | 18ga | 5 | 20 |
| A32-05116 | 16ga x 16cm Single Lumen Orion™ CVC | Stainless | 18ga | 5 | 20 |
| A32-05120 | 16ga x 20cm Single Lumen Orion™ CVC | Stainless | 18ga | 5 | 20 |
| A32-05130 | 16ga x 30cm Single Lumen Orion™ CVC | Stainless | 18ga | 5 | 20 |
| A32-04110 | 18ga x 10cm Single Lumen Orion™ CVC | Stainless | 19ga | 5 | 20 |
| A32-04116 | 18ga x 16cm Single Lumen Orion™ CVC | Stainless | 19ga | 5 | 20 |
| A32-04120 | 18ga x 20cm Single Lumen Orion™ CVC | Stainless | 19ga | 5 | 20 |
| A32-04130 | 18ga x 30cm Single Lumen Orion™ CVC | Stainless | 19ga | 5 | 20 |
ORION™ Double Lumen Central Venous Catheter Kits
| Catalogue No. | CVC Description | Guidewire | Introducer | Box Qty. | Carton Qty. |
|---|---|---|---|---|---|
| A32-04205 | 4f x 05cm Double Lumen Orion™ CVC | Stainless | 20ga | 5 | 20 |
| A32-04208 | 4f x 08cm Double Lumen Orion™ CVC | Stainless | 20ga | 5 | 20 |
| A32-04213 | 4f x 13cm Double Lumen Orion™ CVC | Stainless | 20ga | 5 | 20 |
| A32-04230 | 4f x 30cm Double Lumen Orion™ CVC | Stainless | 20ga | 5 | 20 |
| A32-05206 | 5f x 06cm Double Lumen Orion™ CVC | Stainless | 19ga | 5 | 20 |
| A32-05208 | 5f x 08cm Double Lumen Orion™ CVC | Stainless | 19ga | 5 | 20 |
| A32-05213 | 5f x 13cm Double Lumen Orion™ CVC | Stainless | 19ga | 5 | 20 |
| A32-07215 | 7f x 15cm Double Lumen Orion™ CVC | Stainless | 19ga | 5 | 20 |
| A32-07220 | 7f x 20cm Double Lumen Orion™ CVC | Stainless | 19ga | 5 | 20 |
| A32-07230 | 7f x 30cm Double Lumen Orion™ CVC | Stainless | 19ga | 5 | 20 |
ORION™ Triple Lumen Central Venous Catheter Kits
| Catalogue No. | CVC Description | Guidewire | Introducer | Box Qty. | Carton Qty. |
|---|---|---|---|---|---|
| A32-05308 | 5.5f x 08cm Triple Lumen Orion™ CVC | Stainless | 19ga | 5 | 20 |
| A32-05313 | 5.5f x 13cm Triple Lumen Orion™ CVC | Stainless | 19ga | 5 | 20 |
| A32-05330 | 5.5f x 30cm Triple Lumen Orion™ CVC | Stainless | 19ga | 5 | 20 |
| A32-07315 | 7f x 15cm Triple Lumen Orion™ CVC | Stainless | 19ga | 5 | 20 |
| A32-07320 | 7f x 20cm Triple Lumen Orion™ CVC | Stainless | 19ga | 5 | 20 |
| A32-07330 | 7f x 30cm Triple Lumen Orion™ CVC | Stainless | 19ga | 5 | 20 |

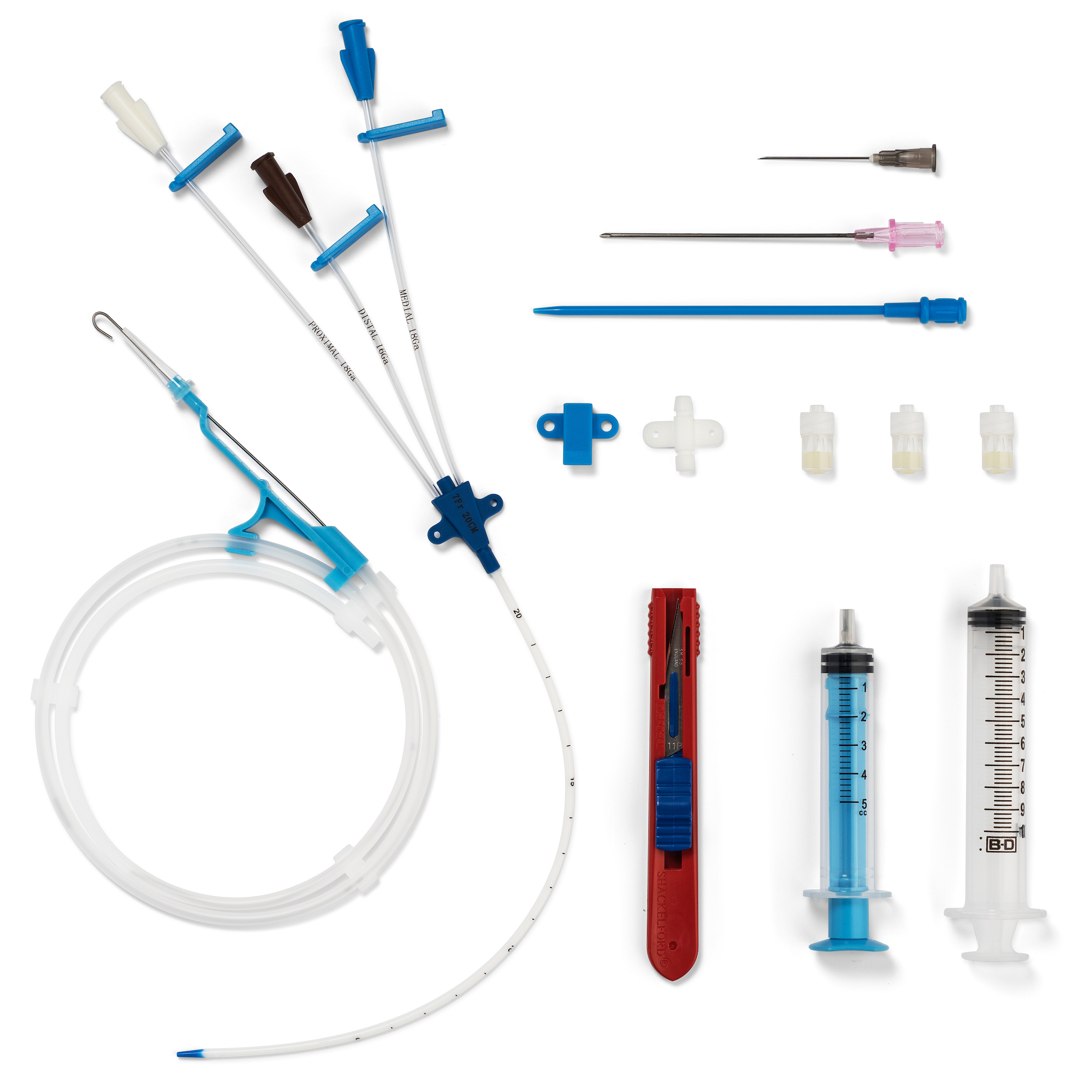

Standard ORION™ Central Venous Catheter Kit Components
- Orion™ Central Vein Catheter
- Injection Cap (1 – 3)
- Guidewire
- Introducer Needle
- Dilator
- #11 Scalpel
- Hypodermic Needle
- 10ml Syringe
- 5ml Raulerson
- Syringe
- Movable Wing
- CVC IFU
